BEP HEAVY DUTY SINGLE POLE THERMAL BREAKER 100AMP

BEP HEAVY-DUTY SINGLE POLE THERMAL TYPE BREAKERS

Applications: Auxiliary and accessory circuits - trucks buses RVs and marine applications battery chargers and DC audio systems. Sealed for engine compartment and bilge area applications.

Specification

Rating: 100A; 30V DC 3000A interrupt capacity

Housing: Thermoset plastic; UL rated 94VO; 311F (155C)

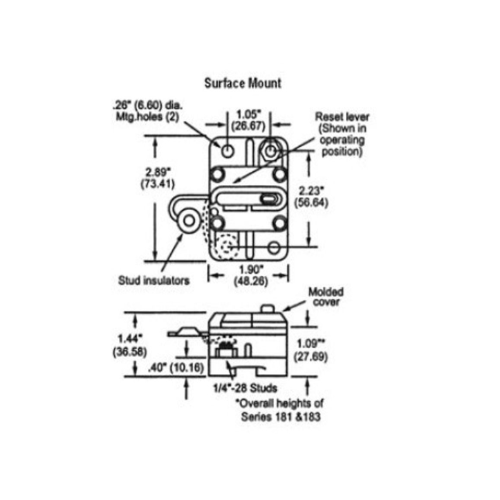

Surface Mounting

Indicator: A unique reset mechanism showing tripped condition
