Shaft Technoseal zinc Anode - various sizes

Zinc boat shaft anodes are a crucial part of corrosion protection for boats, especially those with metal propeller shafts and other submerged metal components. These anodes are designed to protect boat shafts from galvanic corrosion, a process that occurs when different metals are in contact with each other in a conductive environment (like seawater) and result in the more reactive metal corroding to protect the less reactive metal.

What Is a Zinc Boat Shaft Anode?

A zinc boat shaft anode is a type of sacrificial anode specifically designed for the propeller shaft (or drive shaft) and related underwater components of a boat. It's typically made of zinc, which is an easily corroding metal that is more electrically active than other metals commonly used in boat shafts, such as bronze or stainless steel.

The zinc anode sacrifices itself by corroding over time, preventing the metal shaft and other surrounding underwater metal parts (such as the rudder, stern tube, or propeller) from corroding. Without these anodes, those metal parts would corrode instead, which can lead to costly repairs or replacements.

Why Are Zinc Anodes Used on Boat Shafts?

1. Prevention of Galvanic Corrosion:

   • Galvanic corrosion happens when two different metals are in contact in water (an electrolyte). In the case of a boat, the propeller shaft (typically made of stainless steel, bronze, or another corrosion-resistant metal) and surrounding components may interact with seawater, causing one of the metals to corrode.
   • A zinc anode is designed to be more reactive than the shaft and surrounding metals. The zinc corrodes preferentially, preventing the propeller shaft from deteriorating.

2. Protection for Submerged Metal Components:

   • The shaft is just one of many submerged metal components that may need protection. Other parts, such as the propeller, rudder, stern gear, and struts, are also vulnerable to galvanic corrosion.
   • Zinc anodes are typically installed near the shaft to offer local protection to these parts, ensuring that the boat’s propulsion system remains intact and free from corrosion.

3. Effective in Saltwater Environments:

   • Zinc is highly effective in saltwater environments, where corrosion risks are higher due to the high conductivity of seawater. Saltwater accelerates the galvanic process, so the use of sacrificial anodes like zinc becomes even more important for long-term protection of boat shafts and other underwater components.

How Does a Zinc Boat Shaft Anode Work?

• When a zinc anode is installed on the boat shaft or other submerged metal parts, it is positioned to be in contact with seawater.
• The zinc is more electrically active than the metals used in the shaft or other boat components. As a result, the zinc anode undergoes electrochemical corrosion rather than the shaft or propeller.
• The sacrificial process occurs over time, as the zinc anode slowly corrodes, while the shaft and other more valuable components remain intact and protected from galvanic corrosion.

This process helps to extend the lifespan of critical components like the propeller shaft, rudder, and stern tube, which would otherwise deteriorate much faster in the harsh marine environment.

Where Are Zinc Boat Shaft Anodes Installed?

• On the Propeller Shaft: Zinc anodes are often installed directly on the propeller shaft itself, near where the shaft enters the boat’s hull, usually around the stern tube. This ensures that the shaft is effectively protected against corrosion.

• Stern Gear and Rudder Protection: In addition to the propeller shaft, zinc anodes may be used to protect nearby components like the rudder, stern gear, and strut. These parts are often in close proximity to the shaft and also need protection from galvanic corrosion.

• Mounting Locations: Zinc boat shaft anodes are usually clamped or attached to the shaft or stern tube using bolts or set screws. Proper attachment ensures that the anode is securely in place and can provide optimal protection.

Types of Zinc Anodes for Boat Shafts:

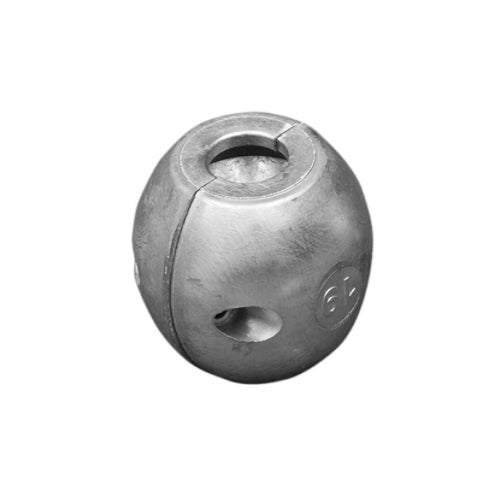

• Clamshell Anodes: These are often used on propeller shafts. They fit around the shaft and are attached with bolts or screws. The clamshell design allows for easy installation and replacement, and it is ideal for shafts that are already installed.

• Disc or Ring Anodes: These are flat or ring-shaped anodes that are often installed at the end of the shaft or near the propeller. They work by providing a larger surface area for the sacrificial protection of the shaft.

• Bolt-On Anodes: These are similar to clamshell anodes but are designed to be attached with a bolt that threads through the shaft. They’re typically used when there's a specific area on the shaft that requires additional protection.

When Should You Replace a Zinc Boat Shaft Anode?

• Check Annually: Zinc anodes wear down over time due to corrosion, so they should be inspected at least once a year. You’ll want to check for signs of wear, especially if the boat has been exposed to saltwater for extended periods.

• Replace When Half-Worn: A good rule of thumb is to replace the zinc anode when it is more than half-corroded. If you wait too long to replace it, the shaft and other protected components may start to corrode, resulting in costly repairs.

• Monitor Regularly: If your boat is in the water year-round or exposed to harsh conditions, you might need to check and replace the anode more frequently, as zinc corrodes faster in saltwater.

Advantages of Using Zinc Boat Shaft Anodes:

• Cost-Effective: Zinc anodes are generally affordable and easy to replace, making them a cost-effective solution for protecting expensive boat components from corrosion.

• Prevent Expensive Repairs: Corrosion of the propeller shaft or other critical underwater parts can lead to extensive damage. Zinc anodes prevent this, saving you from costly repairs or replacements of the boat’s metal parts.

• Simple Maintenance: Zinc anodes are easy to install and replace. Regular maintenance involves simple checks, making them convenient for boat owners.

Zinc boat shaft anodes are essential for protecting the propeller shaft, rudder, stern gear, and other submerged metal components from galvanic corrosion in saltwater environments. By sacrificing themselves, zinc anodes protect the valuable parts of your boat, ensuring a longer lifespan for critical components and avoiding expensive repairs.
