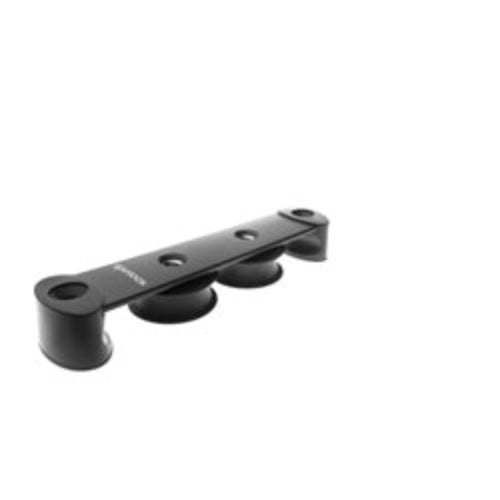

Spinlock T50 2-Sheave Deck Organiser

• Minimal overall length
• Efficient bearings surface reduces winch effort and increases halyard life
• Integral end fairings for safe side loading
• Asymmetric version reduces deck footprint and saves weight
• T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
• Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted

Specification

Sheave Diameter/Type

50mm (2") composite

SWL per sheave

1000kg (2200lbs)

Total SWL per unit

No of sheaves x500kg (1100lbs)

Line Diameter

Up to 14mm (9/16")

Weight

185g (6.5oz) for 2 sheave organiser
45g (1.6oz) per extra sleeve

Fasteners

2x M6 (1/4") CSK (not supplied)
