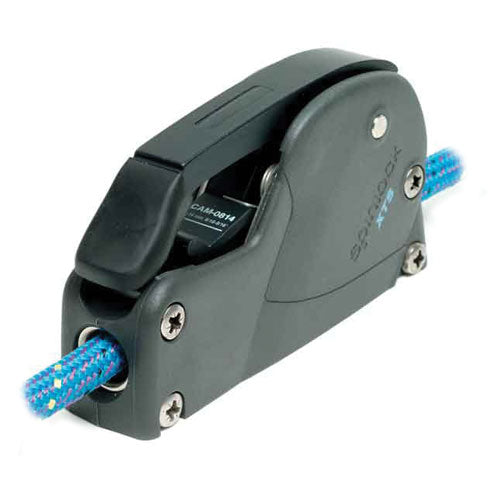

Spinlock XTS 8-14mm Single Rope Clutch

The XAS Rope Clutch is engineered for high-performance cruising and racing yachts up to 42 feet, offering reliable line control and exceptional holding power across a wide rope diameter range. Designed for versatility, it accommodates frequent line changes or upgrades to smaller, stronger ropes without compromising grip or performance.

Built with an alloy centerplate for optimal load distribution and impact-resistant materials for durability, the XAS ensures smooth operation even under extreme conditions. Its easy-release mechanism, line-friendly cam design, and modular construction make it simple to maintain, upgrade, and customize.

The clutch can also be side-mounted using the optional XAS-SMNT side-mount kit, maintaining the same hole spacing as the XA model for easy retrofitting.

Specifications:

• Dimensions: 156mm (L) × 86mm (H) × 38mm (W)

• Maximum Safe Working Load: 1000 kg (2200 lbs) @ 14mm line

• Weight: 0.51 kg (1.1 lbs)

• Rope Diameter Range: 6–14mm

• Mounting Options: Standard or side-mounted (with XAS-SMNT kit)

Key Features:

• Easy, smooth line release under load

• High impact resistance with soft side-grip design

• Modular build for easy maintenance and upgrades

• Optional colored inserts for quick line identification

• Enhanced clutching on smaller diameter ropes

• Proven performance in demanding marine environments
