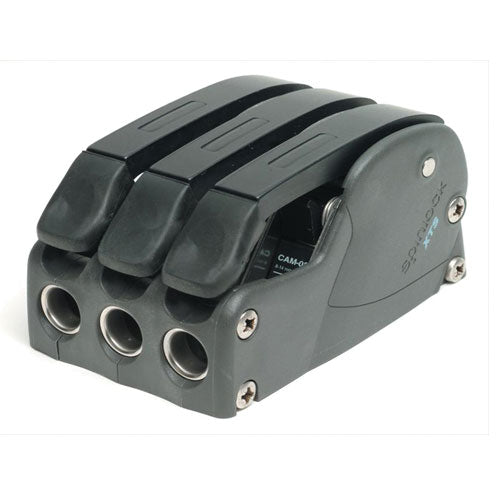

Spinlock XTS 8–14mm Triple Rope Clutch

 is engineered for high-performance cruising and racing yachts up to 42 feet. Designed to handle multiple lines with precision, it offers superior holding power and smooth release under load.

Its wide rope diameter range (8–14mm) ensures compatibility with a variety of line types, accommodating upgrades to modern, high-strength ropes. Constructed with alloy centerplates for optimal load distribution and impact-resistant materials, the XTS provides exceptional durability in demanding marine environments.

The modular design allows for easy maintenance and upgrades, while optional color inserts aid quick line identification. The clutch can also be side-mounted using the XAS-SMNT side-mount kit, maintaining consistent hole spacing with the XA series for convenient installation.

Specifications:

• Rope Diameter Range: 8–14mm (5/16–9/16")

• Dimensions: 156mm (L) × 86mm (H) × 99mm (W)

• Maximum SWL: 1000 kg (2200 lbs) @ 14mm line

• Weight: 1.47 kg (3.24 lbs)

• Mounting Options: Standard or side-mount with XAS-SMNT kit

Key Features:

• Easy line release under high load

• High impact resistance with ergonomic side-grip design

• Modular construction for easy maintenance and upgrades

• Optional color inserts for line identification

• Excellent clutching and holding power on smaller diameter lines

• Proven performance and reliability in harsh marine conditions
