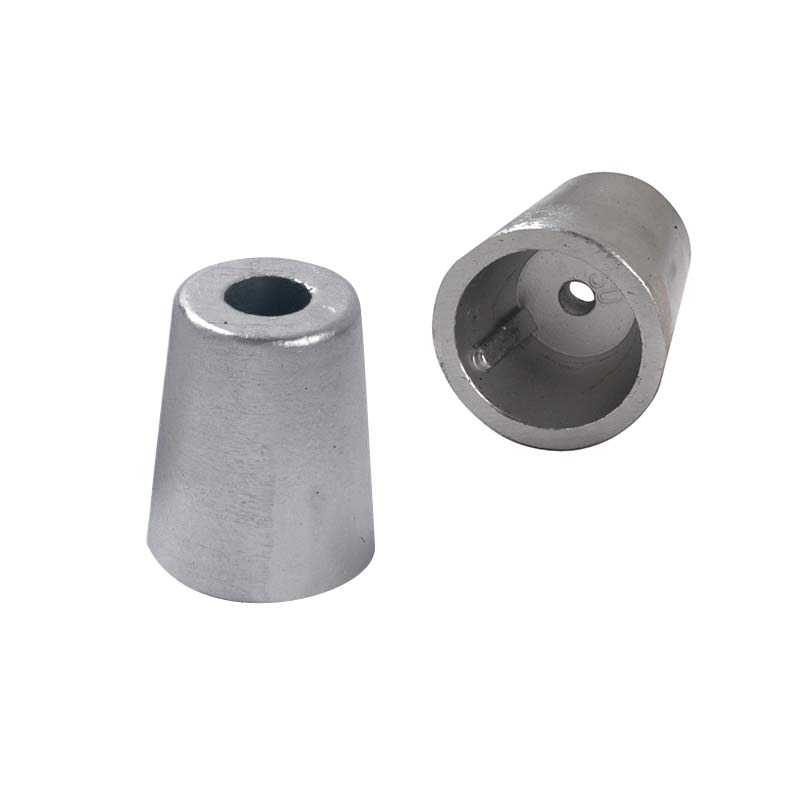

Tapered Prop TECHNOSEAL Anode - 40mm

Anode suitable for use on 40mm Propshaft.

Internal Diameter: 40mm.

A taper zinc shaft anode is a specific type of sacrificial anode designed to protect the propeller shaft or stern gear of a boat from galvanic corrosion. It is made from zinc, a material that corrodes more easily than the metals typically used in the construction of boat shafts (like stainless steel or bronze). This corrosion protection is vital in preventing damage to submerged metal components in saltwater environments, where galvanic corrosion is more prevalent.

Key Features of a Taper Zinc Shaft Anode:

1. Tapered Design:

   • The taper refers to the shape of the anode, which gradually narrows from one end to the other. This tapered shape allows the anode to fit snugly onto a propeller shaft or other similar components, especially in areas where space or a more specific fit is required.
   • The tapered design ensures that the anode stays securely in place on the shaft, offering maximum contact for corrosion protection without interfering with the shaft’s operation or other mechanical components.

2. Sacrificial Protection:

   • Like all sacrificial anodes, a taper zinc anode is designed to corrode before the protected metal does. Zinc, being more electrically active than metals like bronze or stainless steel, corrodes in the presence of seawater, effectively preventing the propeller shaft, rudder, or other nearby submerged components from deteriorating.

3. Fit for Propeller Shafts:

   • The tapered shape makes these anodes ideal for propeller shafts or stern tubes where the anode needs to fit tightly around the shaft and align well with the submerged parts to provide effective protection.
   • The anode might be designed to clamp onto the shaft or slide over it, depending on the specific model.

4. Galvanic Corrosion Prevention:

   • Galvanic corrosion occurs when two dissimilar metals (such as a stainless steel shaft and a bronze propeller) are submerged in water and electrically connected. The more active metal (in this case, zinc) will corrode preferentially, while the less active metals (like the shaft) are preserved.
   • The taper zinc anode works by providing electrochemical protection, ensuring that the shaft and other important underwater components remain intact.

How Does a Taper Zinc Shaft Anode Work?

• Attachment to Shaft: The taper zinc shaft anode is typically installed around the propeller shaft or near other submerged metal components. Its tapered shape allows it to fit snugly onto the shaft or stern tube, providing optimal contact with the surrounding water and making it more efficient in protecting the shaft from corrosion.

• Sacrificial Action: When the boat is in water, the zinc anode slowly starts to corrode, but it does so at a much faster rate than the shaft or surrounding metals. This sacrificial action helps to ensure that the metal shaft or rudder does not experience corrosion, which could weaken or damage the component over time.

• Corrosion Resistance: Zinc is a highly effective anode material for boats in saltwater environments, as it is reactive enough to corrode and prevent other metals from deteriorating due to galvanic action. The taper zinc anode protects the shaft and connected parts by sacrificing itself.

Advantages of a Taper Zinc Shaft Anode:

1. Custom Fit: The tapered shape allows for a better fit on shafts and stern tubes that might not work well with standard cylindrical or flat anodes, providing more effective protection.

2. Improved Corrosion Protection: The tapered design ensures the anode stays securely in place, offering consistent and reliable protection against corrosion along the entire length of the shaft.

3. Prevents Costly Repairs: By preventing corrosion of the propeller shaft and other critical underwater parts, the tapered zinc anode helps to avoid expensive repairs or replacements of these components.

4. Easy to Replace: Zinc anodes are typically affordable and easy to replace, with simple inspection and maintenance required. Once a taper zinc anode has corroded significantly (usually when it is more than half-worn), it can be replaced easily, ensuring continued protection.

Where Are Taper Zinc Shaft Anodes Installed?

• Propeller Shaft: The most common application for taper zinc anodes is to protect the propeller shaft. The anode is usually placed on or near the shaft, often around the shaft's entry point into the boat's stern tube, where it can most effectively prevent corrosion.

• Stern Tube: The anode may also be used to protect the stern tube, which houses the propeller shaft. The stern tube is often where the shaft enters the boat, and ensuring protection here is essential for the boat's long-term durability.

• Other Submerged Metal Parts: In some cases, taper zinc anodes can also be used to protect other submerged metal parts of the boat, such as rudders, struts, or other components near the propeller or shaft.

Maintenance and Replacement of Taper Zinc Shaft Anodes:

• Regular Inspection: The zinc anode should be checked regularly, particularly if the boat is in saltwater. Signs of wear or corrosion indicate that the anode is doing its job, but it will need to be replaced when it has worn down by half or more.

• Annual Replacement: In general, it’s a good idea to replace the anode annually, especially if the boat is in the water for long periods. Frequent exposure to seawater will cause the zinc to corrode faster.
